The STINGER® -

5 of 5 stars


The STINGERĀ®

SKU: STINGER KIT V1
Description



PRE-TREAT DISCONNECT SWITCHES WITH THE STINGER® AND 1FR™ BEFORE OPERATING TO IMPROVE PRODUCTIVITY!

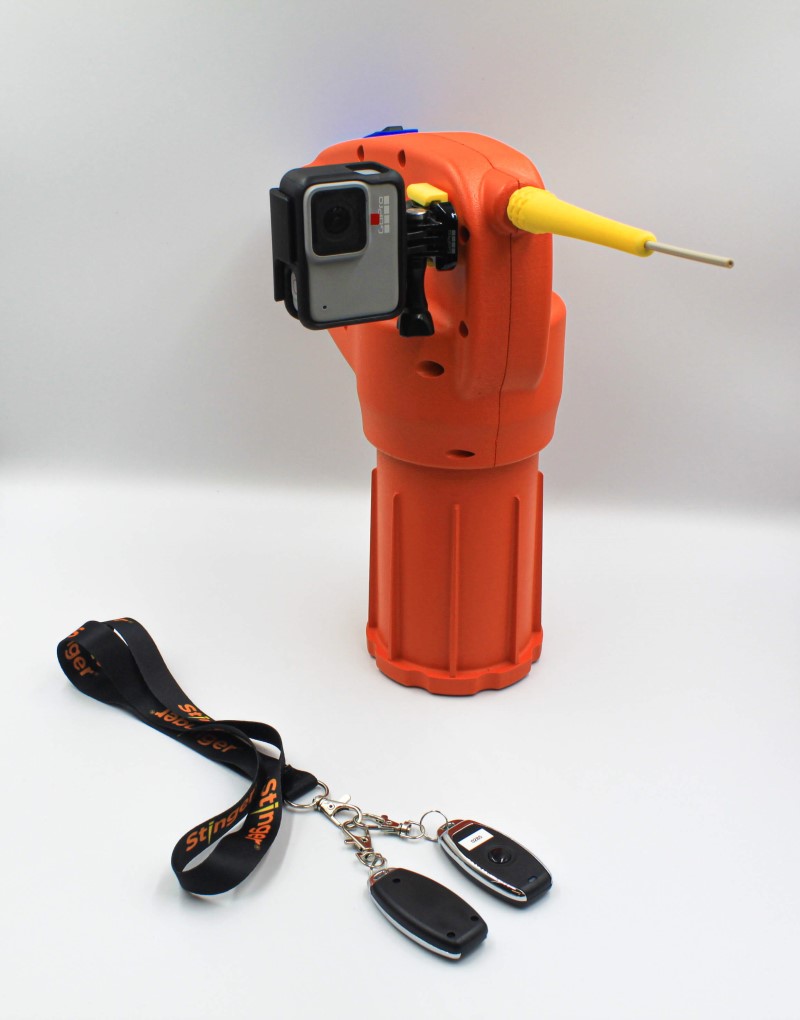

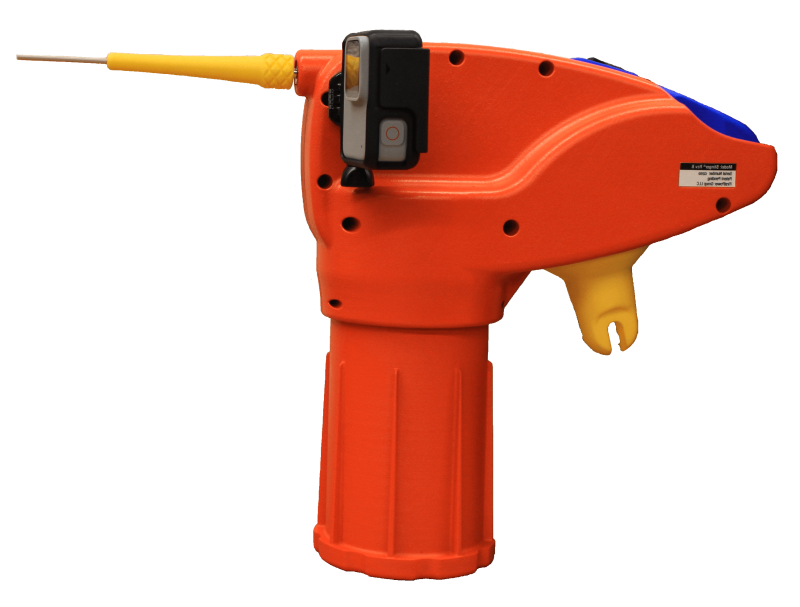

The STINGER® is safe for all Energized Hook, Gang and Motor Operated Switches. Customer Testing using the STINGER® to pre-treat switches with 1FR™ Penetrating Fluid demonstrated a reduction of the force required to open a switch by 50% and reduction of the physical impact of manual switch operation on workers by 40%. Using the wireless Remote Control enables safe precision application of 1FR™ Penetrating Fluid to switch parts freeing stuck switches quicker to support increased switching productivity*. Constructed of dielectric plastic Hi-Pot tested to 250 kV with no exposed conductive parts, the STINGER® passes ASTM F7-12 standard for plastic insulated line equipment. and may be used as a live-line tool. Includes a GoPro® camera which attaches to the STINGER® housing and connects to phone or tablet for a birds-eye view of switches while using the STINGER®. Packaged in MIL-STD 810F/ATA 300 Certified Case with die cut padded interior liner to secure, store and protect the STINGER® when not in use. (*Customer Testing of 1FR™ Penetrating Fluid has proven ability to free corroded switch moving parts in an average of 30-minutes)

  • Dimensions: 10” x 4.25” x 14.6”
  • Weight: 4-lbs
  • Material: Dielectric Resin Rated 221 kV/in (ASTM D149)
  • No Exposed Metal or Conductive Parts
  • Near Field High-voltage Withstand Tested up to 250kV
  • Passes ASTM F7-12 Standard for Plastic Insulated Line Equipment
  • Secure Threaded Attachment for Fluid Cannisters
  • MIL-STD 810F/ATA 300 Certified Case with Die Cut Padded Interior
  • Wireless Button Actuated Remote Control
  • Power Source: 9V Alkaline Batteries, Disposable
  • Universal Toothed Hot Stick Attachment
  • Includes GoPro® HD Video Camera Paired to Hand Held Display
  • Includes Spare Nozzle

Like it? Leave a Review!

Customer Reviews
          5 of 5 stars
"WE HAVE BEEN PUTTING IT TO USE IN A PREVENTATIVE MAINTENANCE ROLE, FOR HOTSPOT MITIGATION ON DISCONNECTS & SWITCHES IN THE SUBSTATIONS, AND IN THAT REGARD THE STINGER HAS EXCEEDED MY EXPECTATIONS."
View More
